AA Summer DLAB :: RED
27th July –14th August 2015
London, Hooke Park / UK

InFlux is the final working prototype of AA Summer DLAB 2015 that took place in AA’s London home and Hooke Park facilities during 27 July – 14 August 2015.

InFlux is the outcome of an exploration on the fabrication and assembly of double-curved complex geometries through the integration of generative design techniques and robotic milling strategies. The research initiated on the material behaviour of concrete in 2014 has been developed in the 2015 cycle by further investigations linking geometry, material, and structure. Realized as a wall with 2.2 meters height, 4 meters width, and a varying depth of 3 – 25 cm, InFlux has been developed, fabricated and assembled in 7 days.

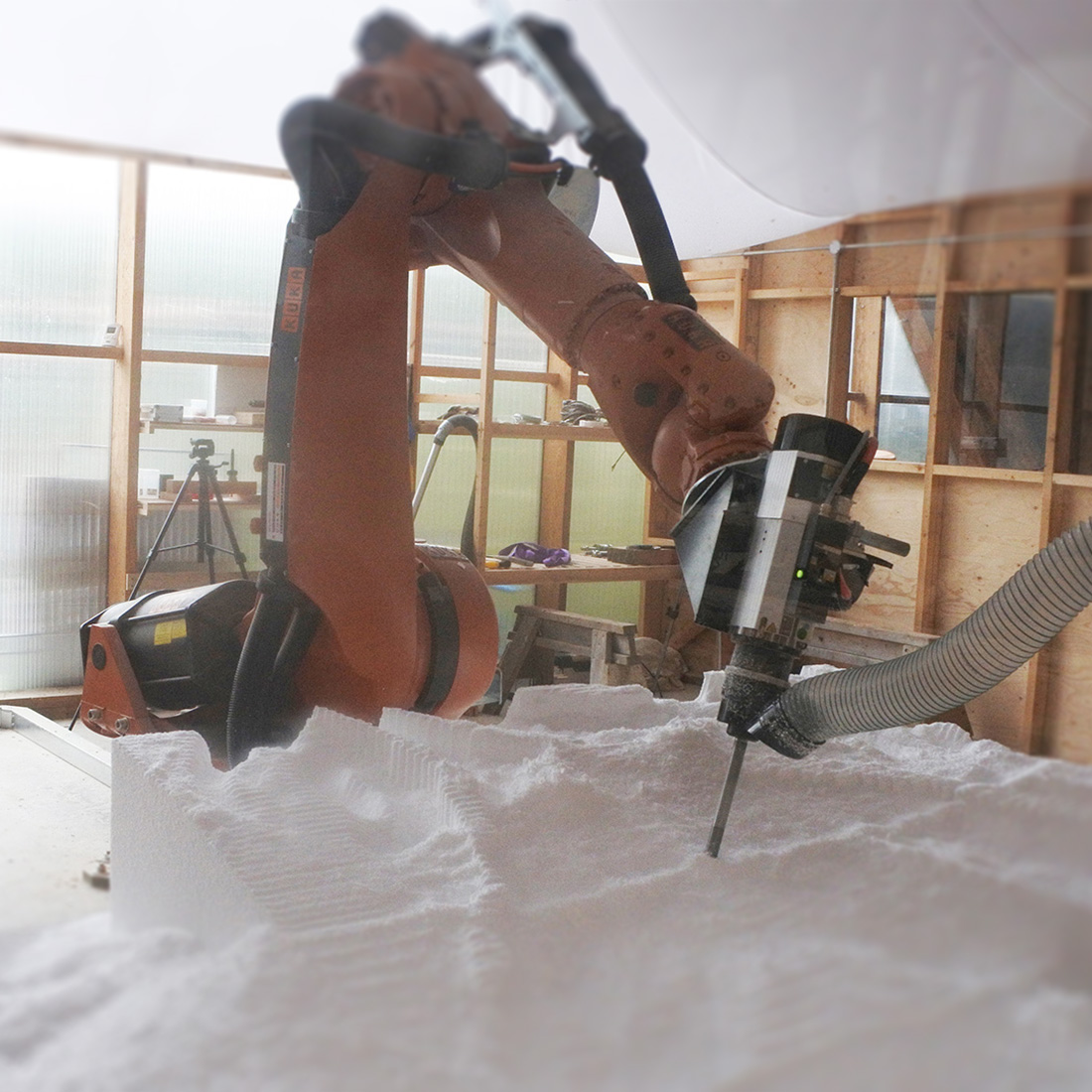

Robotic fabrication processes in design allow for moving away from a direct design-to-production approach, whereby the final outcome is predefined and fabrication solely offers a “means to an end”. The tooling path of the robotic arm serves as a direct visual connection between the global geometry and local surface manipulation; therefore, the robotic end effector plays a crucial role as a design tool in the generation of localized surface textures on the global configuration. The material for the form-work has been selected as medium density (30g/l) fire retardant grade expanded polystyrene (EPS) blocks, as EPS offers a suitable compromise between milling time and strength for form-work construction. The dimension of each EPS block is 200 cm in length, 125 cm in height, and 50 cm in depth, resulting with the employment of a total of 8 EPS blocks.

The end-effector for the robot serves as a design means that aids in the generation of surface textures in the EPS boards. After the completion of the milling process, the areas of contact between the scaffolding and concrete have been treated with a mixture of silicone and mold releasing agent in order to assist with the de-molding process. It is important to note that the structure is made of a special concrete mix with fiberglass additives which has enabled it to be cast, dried and held strongly in place in a period of several hours without being limited by the constraints of applying conventional reinforcing systems such as rebar. The only location where rebar has been used in the final fabrication has been along the foundation of the wall, bearing a depth of 30 cm. The final assembly stages have involved the casting of fast-setting concrete in the EPS form-work, followed by the curing time of approximately 12 hours. With dimensions of 2.2 meters height, 4 meters width, and a varying depth of 30 – 250 mm, the final wall assembly has been developed, fabricated, and assembled in 7 days.

Throughout the design, fabrication, and assembly processes, the interactive associations between different simulation software have been a key driver in recognizing the ways of integrating architectural criteria with the structural performance of the pavilion. Overall, the research aims to illustrate the architectural possibilities of using concrete in a non-conventional way with limited resources and period of time by creating strong associations between computational design methodologies and digital fabrication processes.

Technical Details
21 days :: Duration of programme
7 days :: Design development, fabrication, assembly
18 students :: 11 nationalities
1080 hours :: Fabrication, assembly, dis-assembly time
0.75 m3 :: high-strength concrete
8 m3 :: EPS foam-board

Programme Heads: Elif Erdine, Alexandros Kallegias

Tutors: Alexandros Kallegias, Elif Erdine, Daghan Cam, Angel Fernando Lara Moreira

Students: Lorenzo Pellegrini, Jackson Lindsay, Xiaoxiang Li, Matthew Eng, Angelo Figliola, Nicolo Cernigliaro, Jos van Roosmalen, Areti Sanoudou-Dramalioti, Julian Heinen, Mathias Paul Reisigl, Stavroula Kakaletsi, Pallavi Gupta, Vikas Sharma, Emine Ece Emanetoglu, Leo Claudius Bieling, Florian Kaiser, Jin Li.

Robotic Setup: Pradeep Devadass
